Product Details:
Payment & Shipping Terms:
|
| Colour: | Black/white/customization | Connection: | Single USB Port/dual USB Port/ DC Wire |
|---|---|---|---|
| High Light: | quick mobile charger,cell phone rapid charger |
||

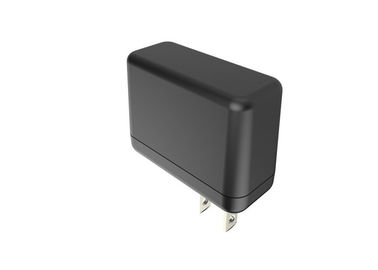

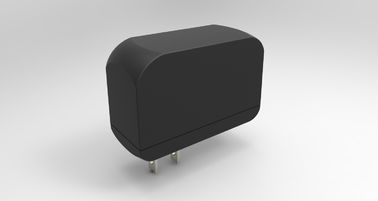

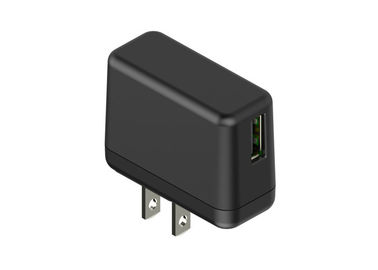

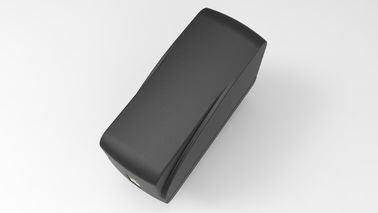

US standard fast mobile charger with ETL FCC CCC CE GS CCC PSE approvals
Brief Description:
AC-DC 5V 1A power adapter
Input voltage:90 - 264VAC
Input frequency:47 - 63Hz
Output voltage:5VDC
Output current:1000MA 2100MA
Colour:black/white
Connection:plug in
Safety approval:
Warranty:2 years
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 2-4 hours | |
| Efficiency: | 80% | |
| MTBF: | 50000 hours | |
| Insulation: | ||
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-64Hz | |
| Input current: | 0.5A Max | |
| Inrush current: | ||
| DC Output | Voltage range: | 5-12VDC |
| Current range: | 1.25-2.4A | |
| Ripple: | 250MVp-p | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
1. We produce most of the materials by ourself, we can control the cost very well.
2. High quality standard as ISO9001 and ISO14001
3. Better lead time is within 15 days after confirmed the order.
4. Professional R/D team
5. Quick response to customer’s requirement through our oversea sales
6. Prefect after-sales service
7. This adapter has pass ETL CE GS PSE EMC KA CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
8. We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.
9. We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
10. Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
USB quick mobile phone charger
