Product Details:
Payment & Shipping Terms:
|
| Product Name: | Ac Power Adapter | Efficiency: | Energy Star Class 6 |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Input Voltage: | 90-264V | Output Power: | 24W |
| Safety: | SAA MEPS | Materials: | PVC |
| DC Cable: | 1.2m 1.5m 1.8m | Package: | White Box + Carbon |
| High Light: | ac dc charger adapter,universal ac dc power adapter,au 2pin 24w wall power adapter |
||
AU 2PIN 24W Wall Power Adapter With 2000ma Output In White Color
AU 2PIN wall mount power adapter
Brief Description:
the universal ac dc power adapter is a single range of the input voltage 90-264Vac and the output power is 24W, the output current can be changed according to the needs, but max is 2000ma.the adapter has OCP OCP SCP function to protect the adapter during working.the adapter has passed universal safety approvals and sold to around 50 countries in the world.
Main parameters:
Input voltage:90 - 264VACer adapter
Input frequency:47 - 63Hz
Output voltage:12VDC
Output current:2000MA
Colour:white/black
Safety licences:ETL/FCC/CE/GS/PSE/CCC/AU
Connection:AU plug in
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Warranty | 2 years | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A | |
| Leakage current: | 0.25mA max at 240VAC input | |
| DC Output | Voltage range: | 12VDC |
| Current range: | 2000MA | |
| Ripple: | 150mVp-p Max | |
| Safety Approvals | ETL/FCC/CE/GS/PSE/CCC/KA | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Features:
1. High efficiency:>83%
2. Stand by power consumption:0.1w(max)
3. Low ripple&noise:150mVp-p(max)
4. Four protection available:OCP,SCP,OVP
5. Free samples are available for the function testing
Competitive advantage:
| we have 10 production lines and the lead time is 15 days only |
| Our adapters passed all safety licences, and satisfy all customers needs |
| we have our own adapters, but OEM is highly welcome |
| We have long time partnership vendors, the pricing is much better |
| Our oversea sales will handle all issues from customers within 24 hours. |
|
Our after sales service is effective and friendly. |
Application:
| Video equipemnt | TV box CCTV, router, set-top-box |
| Audio equipment | Speaker, microphone,recording device |
| Communication device | smart phone nootbook,tablet PC |
| Household appliance | air purifier, water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| others | PS4,segway,game player, electronic toys |
Who we are:
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 1,000,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing

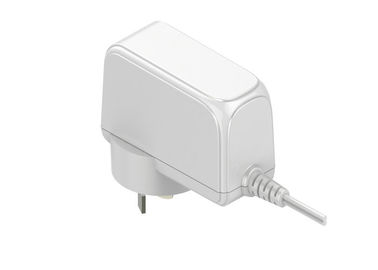

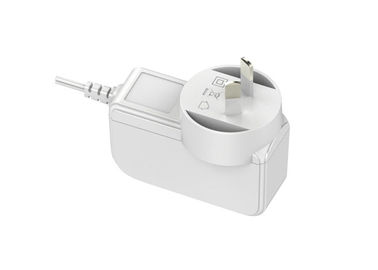

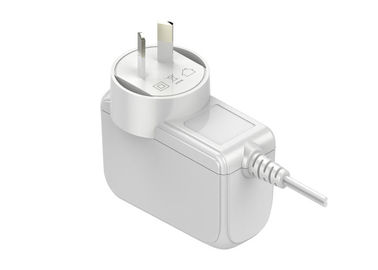

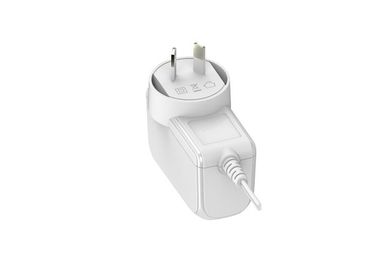

24W AU plug wall mount adaper picture:
