Product Details:
Payment & Shipping Terms:
|
| Product Name: | Desktop Power Adapter | Place Of Origin: | Shenzhen China |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Material: | PVC Endure Heat Above 110 Degrees | AC Cable: | 1.2m 1.5m 1.8m |
| Category: | Desktop Adapter | Output: | 12v2a 24v1a |
| Package: | White Box | MTBF: | 50K Hours |
| High Light: | universal power adapter,universal ac charger,1.5m standard desktop power adapter |
||

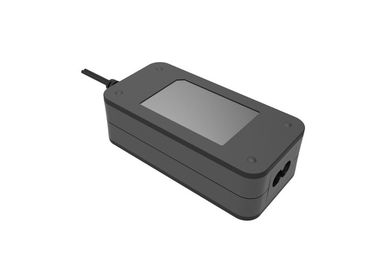

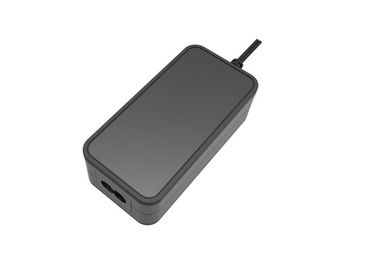

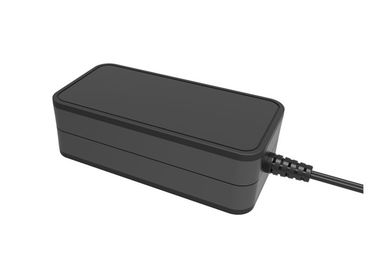

24V 1A desktop switching power adapter with universal safety cerificates
24W desktop switching power supply
Brief Description:
Input voltage:90 - 264VAC
Input frequency:47--63Hz
Output:12V 2A / 24V 1A
Colour:black
AC cord:US,EU,UK,CCC,PSE,KA
Category:laytop adapter
DC cable:1.5m standard
AC cable:1.5m standard
Key Specification:
| Input | Rated input voltage | 120-240VAC |
| Input voltage range | 90-264VAC | |
| Rated frequency | 50/60 Hz | |
| Input frequency range | 47-63Hz | |
| Input AC current | 2A max | |
| Inrush current | 20A max | |
| Output | Rated output voltage | 12- 24VDC |
| Rated output current | 1- 2A | |
| Rated power | 24W Max | |
| Ripple and noise | 120mVp--p | |
| Standby power consumption | 0.3W max | |
| Turn-on | 2S | |
| Hold-up | 5mS | |
| OVP | yes | |
| OCP | yes | |
| Short Circuit prodection | yes | |
| Reliability | Hi-pot | 3000 VAC |
| Burn-In | 4hours | |
| Leakage current | 0.25mA | |
| EMI standards | meet | |
| RoHS compliant | meet | |
| MTBF | 50000 hours | |
| Drop test | yes | |
| Insulation resistance | yes | |
| Environmental | Operating temperature | 0 to 40 degrees |
| Operating humidity | 5% to 90% | |
| Storge temperature | -20 degrees to 85 degrees | |
| Storge humidity | -% to 90% | |
| Safety approvals | ETL/FCC/CE/GS/CCC/PSE/KA | |
| Warranty | 2 years | |
Features:
1. High efficiency:>88% at least
2. Safety licences:main approvals of the world are available
3. Burn -in:100% full load
4. MTBF:50000 hours
Application:
1. Notebook and desktop PC
2. LED screen
3. POS Ssystem
3. other IT equipment
Competitive advantage:
1. we have produced most of the raw materials at our own plant, we control well the materials cost,so our pricing is much better than others.
2. Quality is our life.we always focus on the quality and strictly fellow up the high quality standards as ISO90001.
3. We have 10 production lines and 400 first line works, so our lead time is within 15 days after we received the confirmed order.
4. Our professional R / D team can desigh high quality and more stable adapter.
5. Our oversea sales can quickly handle any requested within 24 hours.
6. Our QE staffs offer very good after sales service.
Quick review of our company:
The adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 10 - 20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have our own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 50,000 pcs adapters and we have four production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
12V 2A universal desktop power adapter:
