Product Details:
Payment & Shipping Terms:
|
| Safety Licences: | ETL/CE/GE/PSE/CCC/FCC/KA/EMI | Output: | 24v.5a / 12v3a |
|---|---|---|---|
| Burn-in: | More Than 4 Hours | Warranty: | 2 Years |
| Power Watt: | 36w Max | Product Name: | Desk-top Ac Adapter |
| Input: | 90-264V | Material: | PVC |
| High Light: | laptop power supply,laptop power adapter |
||
36W 12V 3A destop universal AC - DC power adapter with ETL / CE / PSE / CCC approval
36W universal desktop power supply
Brief description:
Product name:desktop switching power supply
Input voltage:90-264VAC
Input frequency:47-63Hz
Output voltage:24V
Output current:1.5A
Colour:black
Connection:plug in
Safety approval:ETL CE PSE CCC
Warranty:2 years
AC cable:1.5M
Specification:
| Electrical | Hi-pot Test: | 3000VAC |
| Burn-In Test: | 100% full load 2-4 hours | |
| Efficiency: | 86% | |
| MTBF: | 50000 hours | |
| Iusulation: | Yes | |
| AC Input | voltage range: | 90-264VAC |
| Input frequency: | 47-63Hz | |
| Input current: | 0.8A max | |
| Inrush current: | ||
| DC Output | Voltage range: | 24VDC |
| Current range: | 1.5A | |
| Ripple: | 150mVp-p max | |
| Safety Approvals | ETL/FCC/CE/GS/KA/PSE/CCC/EMC | |
| Storage Temperature | -20 degrees to 85 degrees | |
| Normal Working Temperature | 0 degree to 40 degrees | |
Feature:
1. High efficiency:energy star class 6
2. Low ripple and noise
3. more than 4 hours 100% full load burn-in
4. Warranty 2 years
5. MTBF 50000 hours
6. Efficiency:88%
Application:
| Video equipment | TV box,CCTV,router, set-top-box |
| Audio equipment | speaker,microphone,recording device |
| Communication device | smart phone, telephone,notebook,tablet PC |
| Household appliance | air purifier,water purifier,solar panel |
| Medical equipment | cosmetic machine,glucose meter |
| Others | PS4,segway,game player,electronic toys |
Competitive advantage:
| Quick response to customer's requested within 24 hours |
| ISO9001 and ISO14001 are our quality standard management system |
| We produce mostof the materials, the pricing is much better than othrs |
| We have 10 prodection lines to make sure the lead time is 15 days only |
| Worldwide safety approvals are available |
| 0.1% back up of the total order quantity is a must |
| We provide max 5 pcs free samples to customer for testing |
Quick company profile:
This adapter has pass ETL / CE / GS / PSE / EMC / KA / CCC safety approvals around the world and the quality is very good, also the efficiency can meet energy star requirements.
The most important is our pricing and service is much better than other adapter suppliers.
We have more than 15 years experience in this field and we are dedicated to the development and production of the power adapter. Our R / D team has 20 years experience and we have professional management in QC, purchasing and production.
We are a adapter manufacturer and we have own product ,but we also offer OEM to customers and at meantime, customization is available.
Our monthly production capacity is 50,000 pcs adapters and we have 10 production lines,we have more than 30 QC / QA staff to make sure all adapters have passed each testing before packing.
Our plant has over 10,000 square meters working place and around 500 employees to service over 500 customers from around 80 countries in the world.

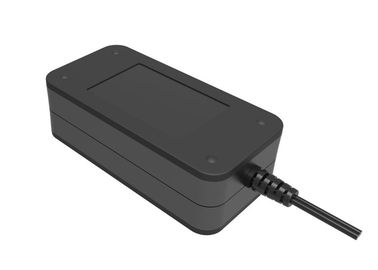

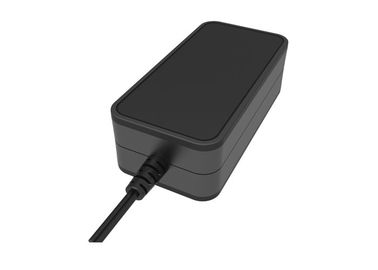

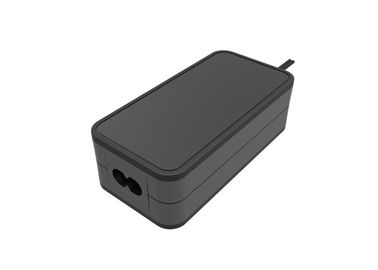

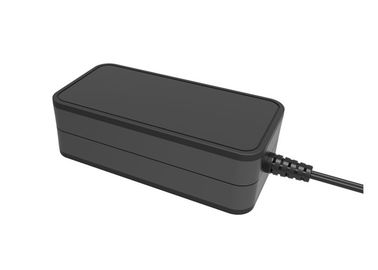

24V 1.5A AC switching power adapter picture view:
